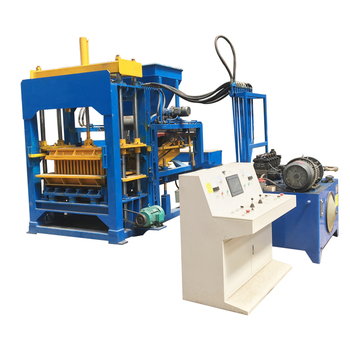

QT5-15 full automatic Curbstone paver brick machine low cost
$15,000.00
Advantage :
(1) PLC controlling system with data entry device,can adjust and measure the machine according to the different steps,and realize QT5-15 concrete block machine algeria fully automatic production.
(2) Hydraulic system consists of imported components and seals with high dynamisc performance proportional valves.The action of key cylinders can operated through the regulator of flow and pressure according to the working requirement.
(3) QT5-15 concrete block machine algeria frame uses high-precision,high-strength castings and special welding technology,so 5-15 concrete block machine algeria has good rigidity vibration resistance and long service life.
描述
QT5-15 full automatic Curbstone paver brick machine low cost parts:
1.PLD800 batching machine
2.converyor belt
3.JS500 mixer

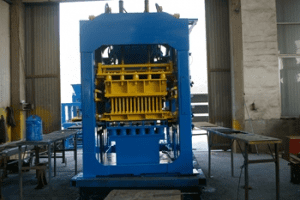

4.host machine
5.stacker
QT5-15 Fully automatic Curbstone paver brick machine low cost introduction:
| >1. The electrical control system of the machine adopts PLC system, the computer interface operation, can realize random signal analysis, fault diagnosis and parameter setting, guarantee the best working effect of the machine. |
| >2. Material storage device: using the closed belt conveyor, strict control of the small hopper discharge, so as to send with the use, to prevent the impact of the aftershocks of the concrete in advance of liquefaction, to ensure product quality and product quality. |
| >3. Force fast and smooth fabric: fabric box stirring fork 360. Rotary motion, so that the fabric is uniform, fast and smooth. To avoid the uneven phenomenon of wet material, product density is good, high quality. Free of material box impact, reduce noise, prolong its service life. |
| >4. Unique and efficient vibration mode: the latest technology, adjust the speed of the motor to meet and guarantee the vibration of the host in the fabric of different vibration frequency and amplitude, thereby improving the quality of the products shorten the molding cycle. |
| >5. Reasonable vibration distribution: the demolding cylinder will die locking strong vibration on the bedplate stiffness, reach Taiwan synchronous vibration, the amplitude distribution, achieved with a smaller deviation of mold intensity. |
| >6. Body structure is novel, strong: the body uses the high strength steel, the use of advanced welding technology welding manufacturing, manufacturing quality, equipment, durable, strong, stable, reliable. |
| >7. One machine can adapt to the various specifications of hollow block,solid blocks, paver brick, curbstone etc.. |
| >8. The machine has compact structure, stable performance, convenient operation and maintenance, small area, low investment, high efficiency, suitable for large, medium and small building materials enterprise investment. |
Main Technical Specification of cement block making machine
| Total Weight | 12000KG |
| Molding cycle | 15-22(s) |
| Vibration form | Table Vibration |
| Vibration frequency | 2000-4000 r/min |
| Vibration Force | 100KN |
| Rated pressure | 21Mpa |
| Power | 33KW |
| Pallet size | 650*1100*30mm |
| Dimension | 3390*2400*4000 mm |
Productivity of automatic brick making machine
| Size | Forming Cycle | Pcs/mould | Pcs/Hr | Pcs/Day | |
| L*W*H mm | |||||
| hollow block | 390*190*190 | 15-20 | 5 | 1000-1200 | 9000-9600 |
| 240*115*90 | 15-20 | 16 | 3000-3500 | 24000-28000 | |
| color brick | 240 *115*53 | 15-20 | 34 | 6500-7000 | 53000-60000 |
其他信息
| Name | QT5-15 full automatic Curbstone paver brick machine low cost |
|---|---|
| Power | 33kw |
