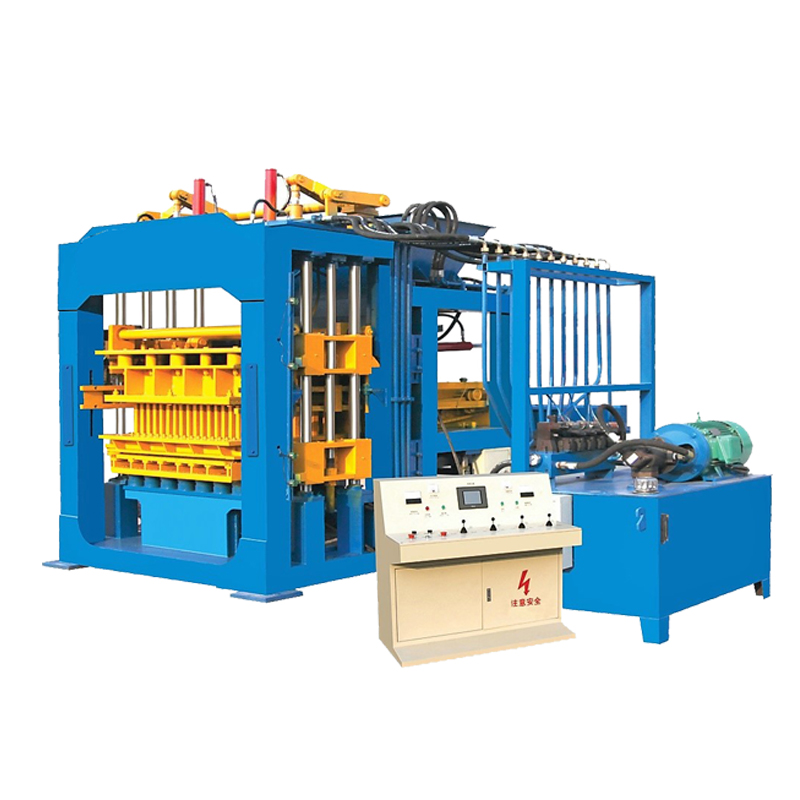

QT8-15 good quality cement molds brick machine supplier

描述

QTJ8-15 good quality cement molds brick machine supplier

Product Description

1. we use big brick machine frame are thick-walled square hole!Customers own identification method: use or use hand knock voice!

2. PLC intelligent PLC control. Through the hydraulic station differential pressure valve and proportional valve, so the machine running, a brick stacker conveyor and power distribution effectively running.

Vibration box is the direct use of motor driven operation, no power loss, to achieve high efficiency

3. machine each part we do can tear open outfit design, with convenient installation and maintenance and replacement parts!And friction on the machinery and equipment parts are all alloy steel processing

4. we all four pillar of orientation is solid steel column!Recognition methods: weighing!And guide column surface are all chromium alloy to increase wear resistance to extend the service life!Recognition methods: see, touch.And we also all the guide inner sleeve on the guide posts for alloy steel, the other all equipped with dust-proof nylon ring on both ends of the guide sleeve, can save oil filling, prevent dust from entering the increase wear resistance and prolong life!

5.PLC touch screen after a rigorous treatment, wear resistant, durable

QTJ8-15 good quality cement molds brick machine supplier technical parameter

Dimension of host machine	4120×1620x2900mm	machine power	40.75KW
Hydraulic pressure	25Mpa	Vibration force	100KN
Forming period	15-20S	Main Vibration Form	Plant-form Vibration
The size of the pallet	1000×850mm	Mixer model	JS750 mixer
Weight of the machine	About 10T	Vibration Frequency	Max.5500r/m



\
